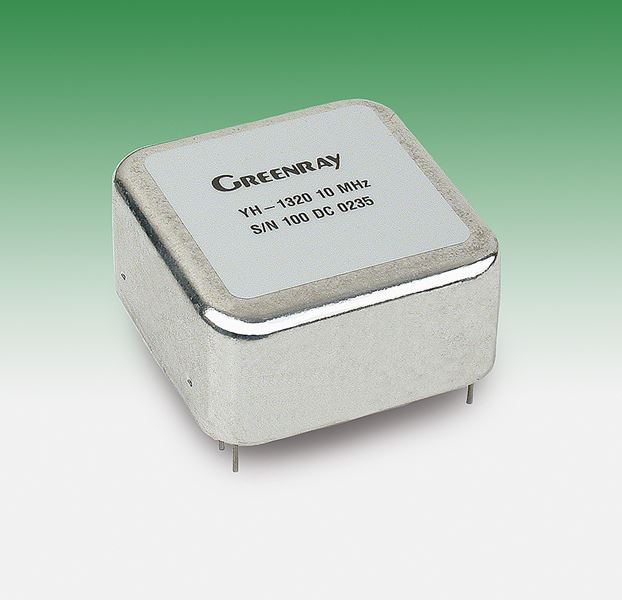

Minimum Frequency |
N/A 10 MHz |
Maximum Frequency |
N/A 120 MHz |
Output |
N/A +10 dBm minimum into 50 ohms Sinewave |
Harmonics |
N/A -20 dBc |
Note for Harmonics |
N/A Sinewave Version |
Frequency Versus Supply |
N/A ±5 x 10-9 for a 5% Change |
Aging for 1 Year at 10 MHz |
N/A ±1 x 10-7 |
Aging for 1 Year at 100 MHz |
N/A ±5 x 10-7 |
Input Direct Current (DC) Voltage |
N/A +12 V |
Tolerance for Input Direct Current (DC) Voltage |
N/A ±5 % |
Input Power |
N/A Idle - ≤ 2.5 W at +25 ºC Turn-on - ≤ 6 W for 5 minutes |
Warm-up Time |
N/A Within ± 5 x 10-8 in 5 minutes, ref to 60 minute frequency at +25 ºC |
Positive Slope Typical Frequency Adjust |
N/A ±1.0 ppm |
Note for Frequency Adjustment |
N/A +0.5 to +5.0 V EFC |
Ordering Example |
N/A
YH1321 - N28 - UL - 10.0 MHz (Model-Stability-Phase Noise Opt-Frequency) |

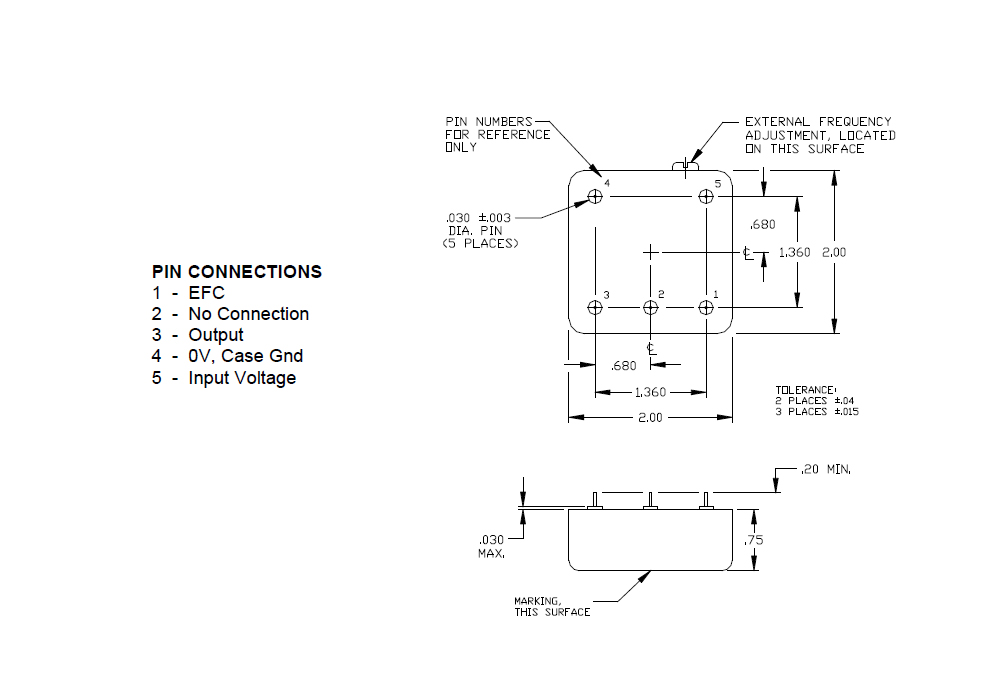

Pin Configuration |
N/A 1 - EFC 2 - No Connection 3 - Output 4 - 0 V and Case Gnd 5 - Input Voltage |
Model B18 |
N/A 10 MHz Tolerance: ±1 x 10-8 Temperature Range: 0 to +50 ºC |
Model G158 |
N/A 10 MHz Tolerance: ±1.5 x 10-8 Temperature Range: -10 to +60 ºC |
Model N28 |
N/A 10 MHz Tolerance: ±2 x 10-8 Temperature Range: -20 to +70 ºC |
Model T58 |
N/A 10 MHz Tolerance: ±5 x 10-8 Temperature Range: -40 to +85 ºC |
Model B58 |
N/A 100 MHz Tolerance: ±5 x 10-8 Temperature Range: 0 to +50 ºC |
Model G78 |
N/A 100 MHz Tolerance: ±7 x 10-8 Temperature Range: -10 to +60 ºC |
Model N17 |
N/A 100 MHz Tolerance: ±1 x 10-7 Temperature Range: -20 to +70 ºC |
Model T37 |
N/A 100 MHz Tolerance: ±3 x 10-7 Temperature Range: -40 to +85 ºC |
10 Hertz (Hz) Frequency Offset |
N/A -125 dBc/Hz at 10 MHz Standard -128 dBc/Hz at 10 MHz Ultra-Low -85 dBc/Hz at 100 MHz Standard -90 dBc/Hz at 100 MHz Ultra-Low |
100 Hertz (Hz) Frequency Offset |
N/A -115 dBc/Hz at 100 MHz Standard -120 dBc/Hz at 100 MHz Ultra-Low -150 dBc/Hz at 10 MHz Standard -155 dBc/Hz at 10 MHz Ultra-Low |
1 Kilohertz (kHz) Frequency Offset |
N/A -145 dBc/Hz at 100 MHz Standard -150 dBc/Hz at 100 MHz Ultra-Low -160 dBc/Hz at 10 MHz Standard -163 dBc/Hz at 10 MHz Ultra-Low |
10 Kilohertz (kHz) Frequency Offset |
N/A -160 dBc/Hz at 100 MHz Standard -165 dBc/Hz at 10 MHz Standard -165 dBc/Hz at 100 MHz Ultra-Low -168 dBc/Hz at 10 MHz Ultra-Low |
100 Kilohertz (kHz) Frequency Offset |
N/A -165 dBc/Hz at 10 MHz Standard -165 dBc/Hz at 100 MHz Standard -168 dBc/Hz at 10 MHz Ultra-Low -168 dBc/Hz at 100 MHz Ultra-Low |
Note for Phase Noise |
N/A Sine Max |
