Minimum Frequency |
N/A 10 MHz |
Maximum Frequency |
N/A 120 MHz |
Output |
N/A +10 dBm minimum into 50 ohms Sinewave |
Harmonics |
N/A -30 dBc |
Spurious |
N/A -80 dBc |
Initial Accuracy |
N/A Within ±0.25 ppm |
Note for Accuracy |
N/A at +25 ºC and +2.5 VDC EFC |
Frequency Versus Supply |
N/A ±5 x 10-9 for a 5% Change |
Frequency Versus Load |
N/A ±5 x 10-9 for a 10% Change |
Aging for 1 Year at 10 MHz |
N/A <1 x 10-7 |
Aging for 1 Year at 100 MHz |
N/A <5 x 10-7 |
Aging for 10 Years at 10 MHz |
N/A 0.5 ppm |
Aging for 10 Years at 100 MHz |
N/A 2.0 ppm |
Input Direct Current (DC) Voltage |
N/A +12 V+15 V |
Input Power |
N/A Idle - 1.5 W Typical at +25 ºC Warmup - <5 W for 5 minutes |
Warm-up Time |
N/A Within 1 x 10-7 in 5 minutes |
Standard (SD Option) Acceleration Sensitivity |
N/A ≤1 x 10-9/g /g |
Available (LG Option) Acceleration Sensitivity |
N/A ≤5 x 10-10 /g |
Note for Acceleration Sensitivity |
N/A Worst axis |
Positive Slope Typical Frequency Adjust |
N/A ±0.75 ppm |
Note for Frequency Adjustment |
N/A 0 to +5 V, center at +2.5 VDC |
Ordering Example |
N/A
YH1485-T17-12.0-LG-TH-10.0 MHz (Series-Stability-Input V-GSense-Package-Frequency) |

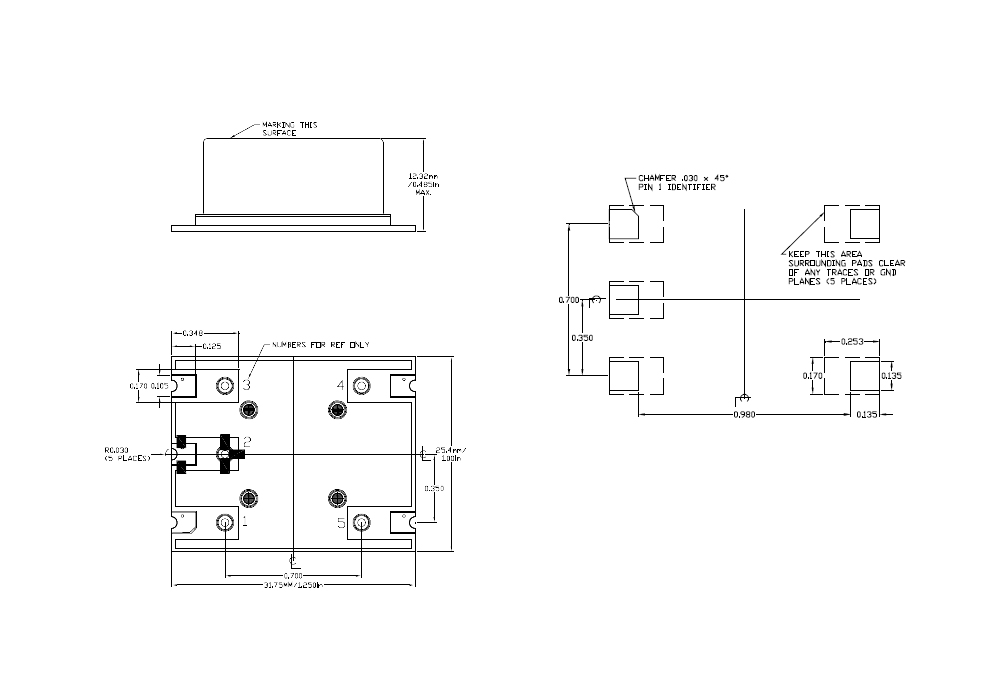

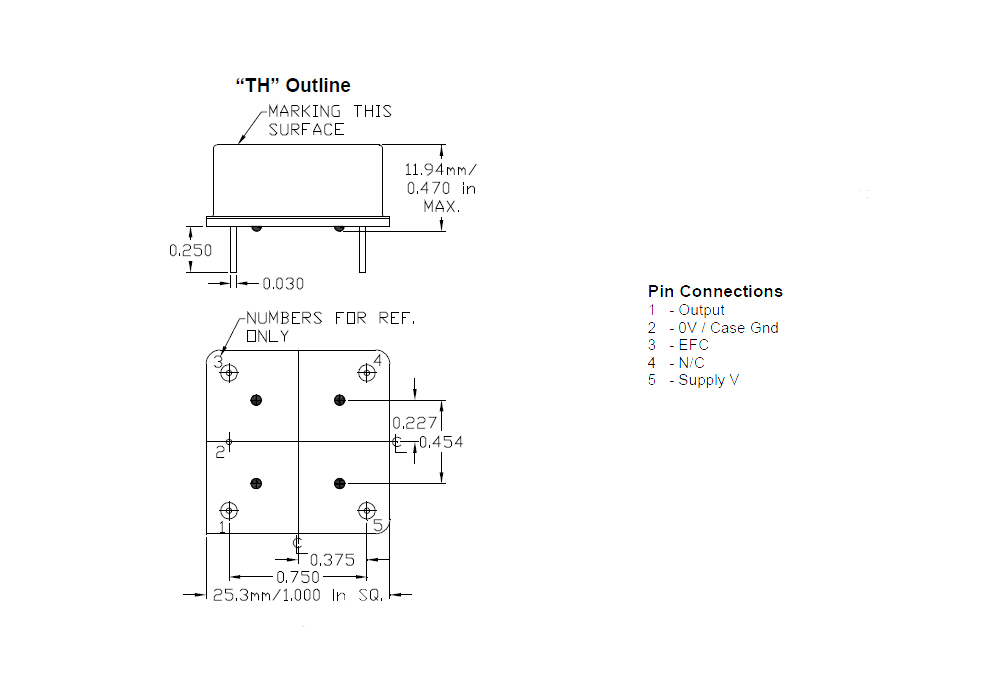

Pin Configuration |
N/A 1 - Output 2 - 0 V and Case Gnd 3 - EFC 4 - N/C 5 - Supply Voltage |
Option N58 (10 MHz) |
N/A Temperature Range: -20 to +70 ºC Tolerance: ±5 x 10-8 |
Option N37 (100 MHz) |
N/A Temperature Range: -20 to +70 ºC Tolerance: ±3 x 10-7 |
Option T17 (10 MHz) |
N/A Temperature Range: -45 to +85 ºC Tolerance: ±1 x 10-7 |
Option T57 (100 MHz) |
N/A Temperature Range: -40 to +85 ºC Tolerance: ±5 x 10-7 |
10 Hertz (Hz) Frequency Offset |
N/A -100 dBc/Hz at 100 MHz -130 dBc/Hz at 10 MHz |
100 Hertz (Hz) Frequency Offset |
N/A -130 dBc/Hz at 100 MHz -155 dBc/Hz at 10 MHz |
1 Kilohertz (kHz) Frequency Offset |
N/A -157 dBc/Hz at 100 MHz -165 dBc/Hz at 10 MHz |
10 Kilohertz (kHz) Frequency Offset |
N/A -170 dBc/Hz at 100 MHz -173 dBc/Hz at 10 MHz |
100 Kilohertz (kHz) Frequency Offset |
N/A -175 dBc/Hz at 100 MHz -176 dBc/Hz at 10 MHz |
1 MHz Offset |
N/A -178 dBc/Hz at 100 MHz -180 dBc/Hz at 10 MHz |
Note for Phase Noise |
N/A Typical at +25 ºC , Static Condtions |
