Minimum Frequency |
N/A 100 MHz |
Maximum Frequency |
N/A 250 MHz |
Output |
N/A +3 dBm minimum into 50 ohms Sinewave |
Harmonics |
N/A -20 dBc |
Subharmonics |
N/A -40 |
Symmetry |
N/A 50 % |
Symmetry Tolerance (±) |
N/A ±10 % |
Note for Symmetry |
N/A Squarewave Version |
Frequency Versus Supply |
N/A ±5 x 10-9 for a 5% Change |
Aging |
N/A ±5 x 10-7 per year |
Input Direct Current (DC) Voltage |
N/A +12 V+15 V±5 V |
Tolerance for Input Direct Current (DC) Voltage |
N/A ±5 % |
Input Power |
N/A Idle - ≤ 2.5 W Typical at +25 ºC Turn-on - ≤ 6 W for 5 minutes |
Warm-up Time |
N/A Within ± 1 x 10-7 in 4 minutes, ref to 60 minute frequency at +25 ºC |
G-Sensitivity |
N/A ≤1 x 10-9/g for "S" package ≤2.5 x 10-9/g for "LP" |
Positive Slope Typical Frequency Adjust |
N/A ±2.0 ppm |
Note for Frequency Adjustment |
N/A 0 to +5.0 V EFC |
Ordering Example |
N/A
YH1518-S37-12.0-LP-160.0 MHz (Model-Temperature Stability-Input V-Package-Frequency) |

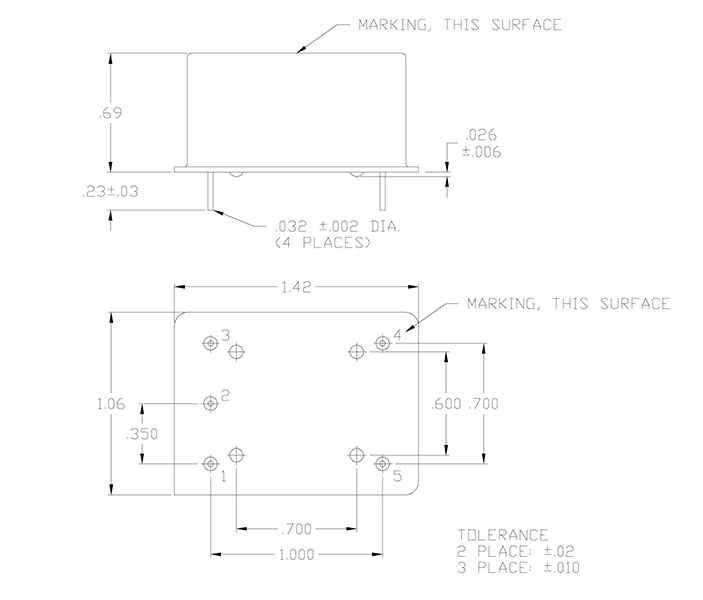

Pin Configuration |
N/A 1 - EFC 2 - No Connection 3 - Input Voltage 4 - Output 5 - 0 V and Case Gnd |
Model N17 |
N/A Stability ±1 x 10-7 Temperature Range: -20 to +70 ºC |
Option S27 |
N/A Stability ±2 x 10-7 Temperature Range: -40 to +70 ºC |
Option S37 |
N/A Stability ±3 x 10-7 Temperature Range: -40 to +70 ºC |
Note for Temperature Stability |
N/A All stabilities may not be available at all frequencies or both package options. |
10 Hertz (Hz) Frequency Offset |
N/A -80 dBc/Hz at 250 MHz -90 dBc/Hz at 160 MHz |
100 Hertz (Hz) Frequency Offset |
N/A -110 dBc/Hz at 250 MHz -120 dBc/Hz at 160 MHz |
1 Kilohertz (kHz) Frequency Offset |
N/A -135 dBc/Hz at 250 MHz -145 dBc/Hz at 160 MHz |
10 Kilohertz (kHz) Frequency Offset |
N/A -150 dBc/Hz at 250 MHz -155 dBc/Hz at 160 MHz |
100 Kilohertz (kHz) Frequency Offset |
N/A -155 dBc/Hz at 250 MHz -160 dBc/Hz at 160 MHz |
Note for Phase Noise |
N/A Typical |
