N/A Greenray |
Minimum Frequency |
N/A 10 MHz |
Maximum Frequency |
N/A 50 MHz |
Output |
N/A Clipped Sinewave (Option S) CMOS Squarewave (Option C) |
Total Gamma G-Sensitivity |
N/A ≤7 x 10-11 /g |
Positive Slope Typical Frequency Adjust |
N/A ±7.0 ppm |
Note for Frequency Adjustment |
N/A 0 to Vcc EFC, 50 kohm input Z |
Ordering Example |
N/A
T1307-C-3.3-10.0 MHz (Model-Output-Input V-Frequency) |

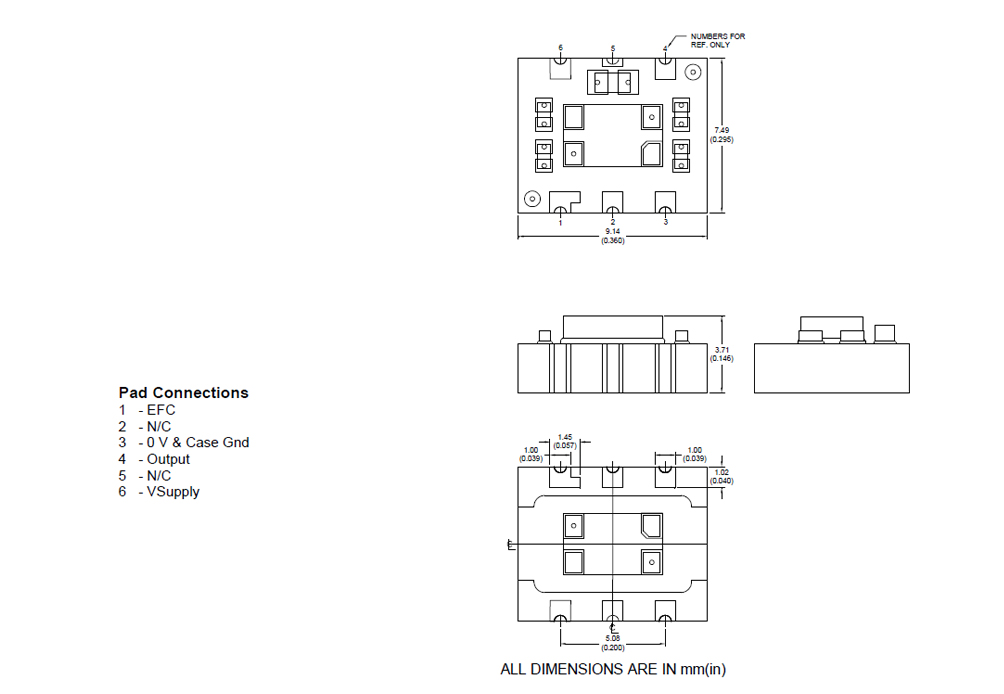

Pad Connections |
N/A 1 - EFC 2 - N/C 3 - 0 V and Case Gnd 4 - Output 5 - N/C 6 - Supply Voltage |
Voltage Control |
N/A +/-5ppm |
Frequency Versus Supply |
N/A ±1 x 10-7 for a 5% Change |
Frequency Versus Load |
N/A ±1 x 10-7 for a 10% Change |
Aging Per Year after 14 Days Operation |
N/A ≤ ±5 ppm |
Warm Up Time in 10 Millisecond (ms) |
N/A Within ±1 ppm |
Load |
N/A 15 pF/10 kohm |
Symmetry |
N/A 50 % |
Symmetry Tolerance (±) |
N/A ±10 % |
10 Hertz (Hz) Frequency Offset |
N/A -95 dBc/Hz |
100 Hertz (Hz) Frequency Offset |
N/A -123 dBc/Hz |
1 Kilohertz (kHz) Frequency Offset |
N/A -145 dBc/Hz |
10 Kilohertz (kHz) Frequency Offset |
N/A -155 dBc/Hz |
100 Kilohertz (kHz) Frequency Offset |
N/A -157 dBc/Hz |
Note for Phase Noise |
N/A Typical 10 MHz |
