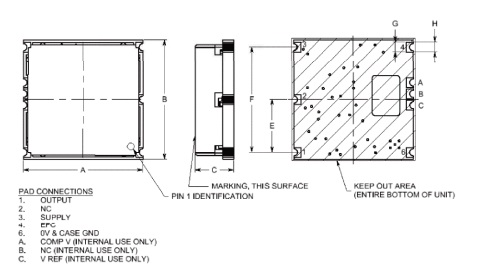

Rugged DIP Package |
N/A 20.3 x 12.7 mm |
Direct Current (DC) Supply Voltage |
N/A 5 V |
Package Size |
N/A 17.3 mm² |
Frequency Range |
N/A 60 to 130 MHz |
Minimum Nominal Frequency at Sinewave |
N/A 60 MHz |
Maximum Nominal Frequency at Sinewave |
N/A 130 MHz |
Typical Frequency Stability (±) at -20 to +70 Degrees Celsius (ºC) Temperature |
N/A 15 ppm |
Typical Frequency Stability (±) at -40 to +85 Degrees Celsius (ºC) Temperature |
N/A 20 ppm |
Note for Frequency Stability |
N/A Other Stability Available |
Maximum Aging Tolerance (±) for 1 Year |
N/A 1.0 ppm |
Maximum Aging (±)at 10 years (100 Megahertz (MHz)) |
N/A 3 ppm |
Maximum Acceleration Sensitivity (SD) |
N/A 2.0 ppb/g |
Maximum Acceleration Sensitivity (LG) |
N/A 0.5 ppb/g |
Maximum Acceleration Sensitivity (ULG) |
N/A 0.09 ppb/g |
Note for Acceleration Sensitivity |
N/A Acceleration Sensitivity is worst axis tested at 90 Hz, 10 g |
Maximum Frequency Versus Voltage for a 5 Percent (%) Change (±) |
N/A 0.1 ppm |
Maximum Frequency Versus Load for a 10% Change (±) |
N/A 0.1 ppm |
Typical Electronic Frequency Control (EFC) (0.5 to Voltage Drain to Drain (VDD) - 0.5 Positive Slope) (±) |
N/A 10 ppm |
Minimum Direct Current (DC) Supply Voltage Drain to Drain (VDD) |
N/A 4.75 V |
Typical Direct Current (DC) Supply Voltage Drain to Drain (VDD) |
N/A 5.0 V |
Maximum Direct Current (DC) Supply Voltage Drain to Drain (VDD) |
N/A 5.25 V |
Typical Load |
N/A 50 Ohms |
Minimum Level 50 O Load |
N/A 10 dBM |
Maximum Supply Current |
N/A 30 mA |
Maximum Harmonics |
N/A -45 dBc |
Maximum Spurious |
N/A -90 dBc |
Typical Phase Noise at 10 Megahertz (MHz) Static Nominal Frequency and 10 Hertz (Hz) Frequency Offset |
N/A -83 dBc/Hz |
Typical Phase Noise at 10 Megahertz (MHz) Static Nominal Frequency and 100 Hertz (Hz) Frequency Offset |
N/A -120 dBc/Hz |
Typical Phase Noise at 10 Megahertz (MHz) Static Nominal Frequency and 1000 Hertz (Hz) Frequency Offset |
N/A -149 dBc/Hz |
Typical Phase Noise at 10 Megahertz (MHz) Static Nominal Frequency and 10000 Hertz (Hz) Frequency Offset |
N/A -160 dBc/Hz |
Typical Phase Noise at 10 Megahertz (MHz) Static Nominal Frequency and 100000 Hertz (Hz) Frequency Offset |
N/A -167 dBc/Hz |
Typical Phase Noise at 10 Megahertz (MHz) Static Nominal Frequency and 1000000 Hertz (Hz) Frequency Offset |
N/A -170 dBc/Hz |
Random Vibration |
N/A
Standard MIL-STD-202 Method, Condition 214, Cond I-A Description 0.3 PSD, 20.7 G rms |
Shock |
N/A
Standard MIL-STD-202 Method, Condition 213, Cond C Description 30 g, 11 ms, sawtooth |
Operating Temperature |
N/A -40 to +85 ºC |
Storage Temperature |
N/A -55 to +85 ºC |
Terminal Finish |
N/A Gold plating (RoHS) is standard (E). SnPb 63/37 also available |
Package Weight |
N/A <3 g |
Soldering Instruction |
N/A Hand Reflow Soldering |
Shipping |
N/A Tray Pack |
Marking |
N/A
Line 1: Greenray logo Line 2: Model Line 3: Frequency Line 4: Serial Number + Data Code (YYWW) Line 5: Lot Number |
